Eco-sustainable magnetoresistive sensors towards disposable magnetoelectronics

Why greener sensors matter

Modern life runs on invisible sensors that help cars detect motion, factories stay safe, phones navigate, and medical devices monitor our bodies. Among them, magnetic sensors stand out because they can “feel” motion and position without touching what they measure. But making billions of these devices every year using scarce metals and harsh chemicals creates mounting environmental and health concerns. This study explores a different path: magnetic sensors that are not only high‑performing, but also made from abundant, biocompatible materials that can safely break down or be recycled after use.

From kitchen-like ingredients to working devices

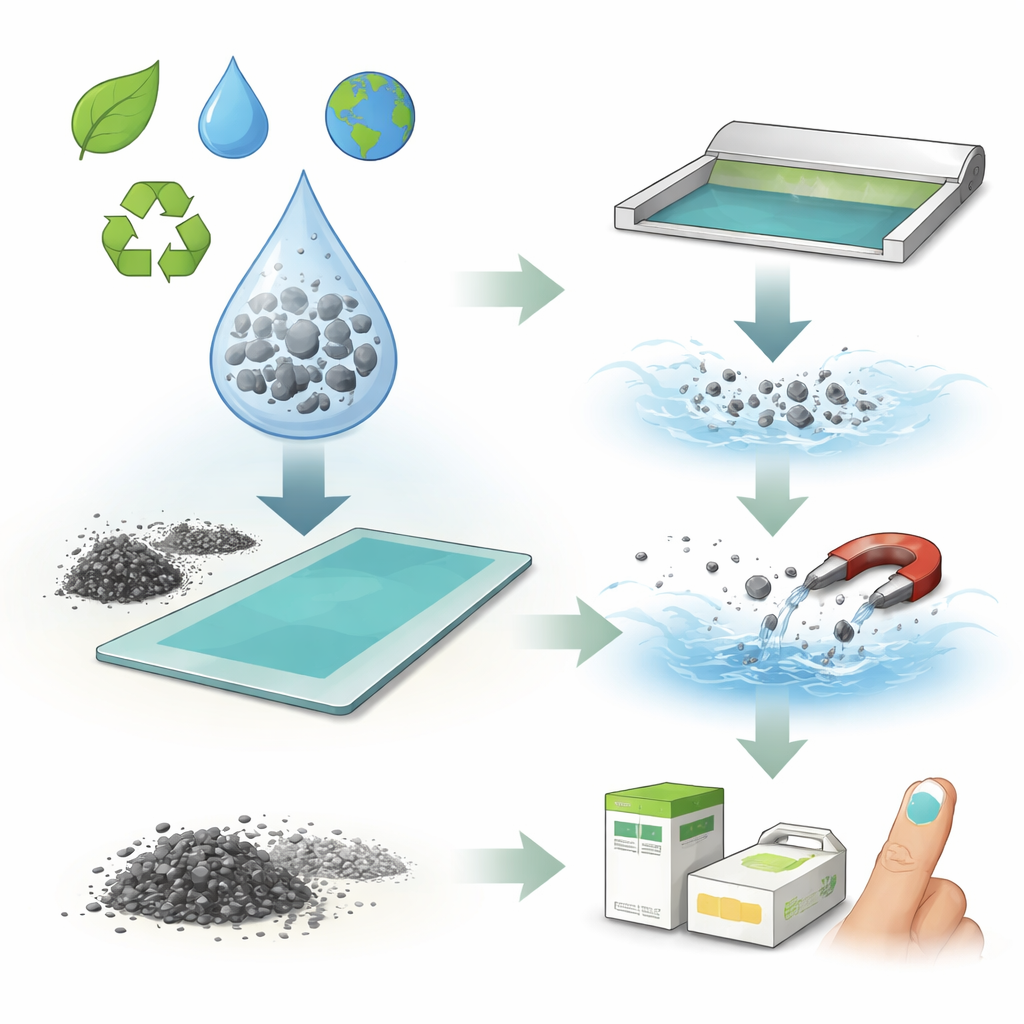

The researchers set out to design a magnetic sensor ink that could be processed with the same kind of large‑area printing used for packaging or T‑shirts. Instead of relying on metals such as cobalt and nickel, which are flagged as hazardous, they built the ink around iron—a common element essential to biology—combined with iron oxide and a binder derived from plant cellulose, all dispersed in water. Using industrial screen‑printing tools, they deposited this ink onto simple substrates such as paper or biopolymer films, forming dense, conductive paths as the water evaporated and the particles packed together. Entire arrays of sensors could be produced on an A4 sheet in one step, showing that the approach scales up easily and avoids high‑vacuum processing or toxic solvents.

How the tiny building blocks boost performance

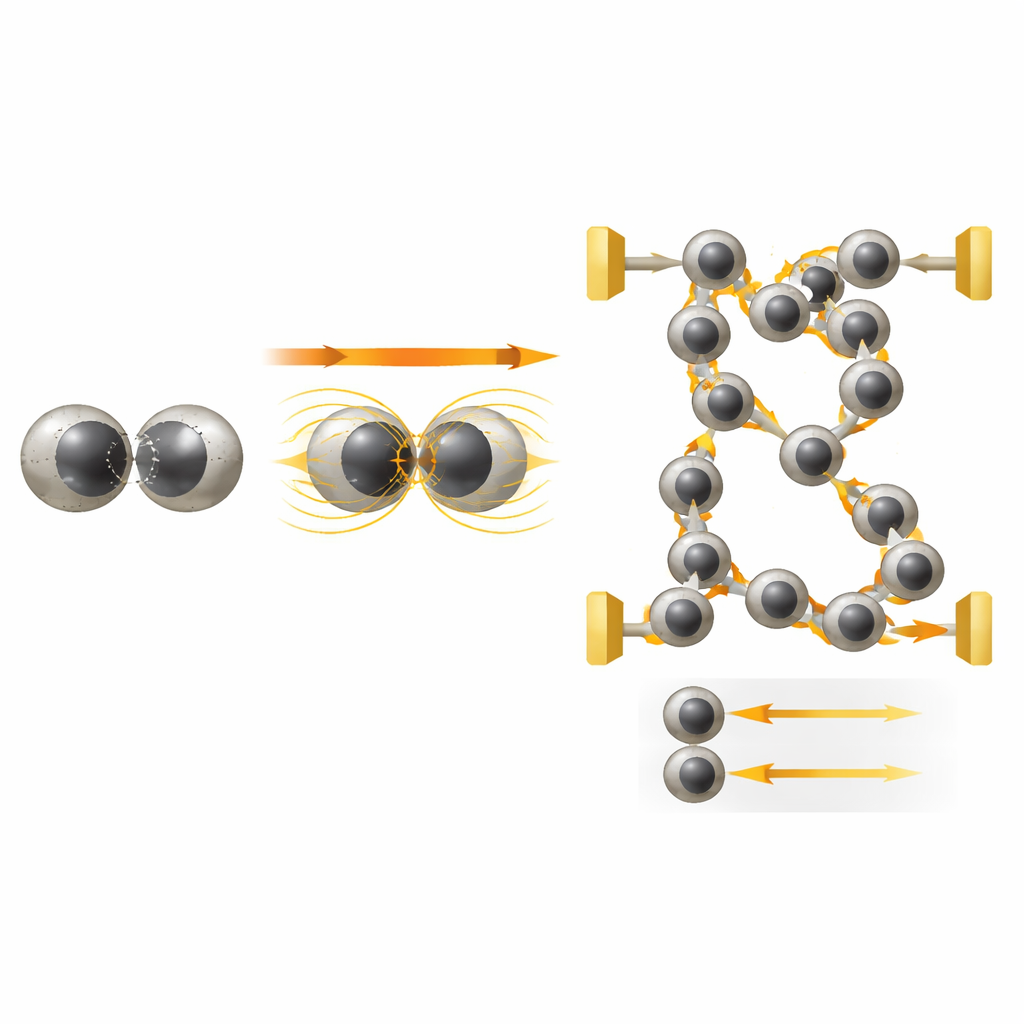

At the heart of the advance is the way each microscopic grain in the ink is engineered. Rather than using plain iron or plain iron oxide, the team created core‑shell particles with a metallic iron center wrapped in a shell of magnetite, a magnetic iron oxide. The iron core acts like a low‑resistance highway for electrical current and concentrates magnetic field lines, while the surrounding shell hosts the subtle spin‑based effects that cause the sensor’s resistance to change when a magnetic field is present. When many such particles touch shell‑to‑shell, electrons hop across the thin oxide barriers in a way that depends on their spin, making the overall resistance highly responsive even to weak fields—far more so than traditional printed iron or iron‑oxide sensors.

Fine-tuning structure, stability, and safety

To squeeze the most performance out of these particles, the authors carefully controlled how the iron surface oxidized into magnetite. By adjusting temperature and pressure, they produced shells thick and crystalline enough to support strong spin‑dependent transport but thin enough to keep resistance practical. They showed that poorly formed shells or over‑oxidized material degraded the effect. Despite this sophisticated inner workings, the finished sensors behave robustly in real‑world use: they tolerate thousands of magnetic cycles without loss of signal and can be encapsulated with simple biodegradable coatings to tailor how long they survive in wet or humid environments. Standard cell‑culture tests revealed that the printed material does not harm mammalian cells, supporting its use on or near living tissues.

Ending the life of electronics without hurting the planet

A key feature of the platform is what happens after the sensor’s job is done. Because the binder and many substrates are water‑soluble, the printed layers can be dispersed simply by soaking in water. The freed iron‑based particles can then be collected with a permanent magnet and reused to print new devices, supporting a closed‑loop material cycle. If sensors are released into the environment instead, the particles slowly corrode into iron ions similar to naturally occurring forms, without producing toxic by‑products. By choosing different natural binders and protective layers—such as alginate, egg white, starch, beeswax, or soft silicone—the team can tune how quickly the devices dissolve, from days to months, depending on the application.

New uses for disposable magnetic gadgets

With their mix of sensitivity, safety, and simple fabrication, these sensors open up uses that would be risky or uneconomical with conventional electronics. The authors demonstrate smart packaging in which a printed sensor and a small magnet on a medicine box record each opening event, helping track whether pills are taken on schedule. In another example, sensors printed directly on fingernails, combined with a magnetic ring, act as a disposable controller for a video game: moving a finger closer or farther from the ring changes the magnetic field and triggers different actions. Similar sensors can be printed onto fruit, leaves, or flowers for gentle environmental or food monitoring and later washed away without visible residue.

What this work means going forward

Overall, the study shows that it is possible to join two goals often seen as competing: strong technical performance and responsible materials use. By redesigning both the microscopic structure of magnetic particles and the macroscopic printing and recycling steps, the authors achieved printed magnetic sensors that are more sensitive in low fields than any previous fully printed designs, yet are made from abundant, biodegradable components and processed in water. While a full cradle‑to‑grave assessment still lies ahead, this approach points toward a future in which disposable magnetoelectronic devices—vital to the growth of the Internet of Things—can be used at massive scale without leaving a long‑lasting environmental footprint.

Citation: Guo, L., Xu, R., Das, P.T. et al. Eco-sustainable magnetoresistive sensors towards disposable magnetoelectronics. Nat Commun 17, 3034 (2026). https://doi.org/10.1038/s41467-026-71077-9

Keywords: biodegradable electronics, magnetic sensors, printed electronics, sustainable materials, Internet of Things
