Chip-scale packaged in-line polarization-resolved detector for optically pumped magnetometers

Why Shrinking Magnetic Sensors Matters

Our bodies and our planet constantly generate faint magnetic whispers—signals from the human brain and heart, or from hidden structures deep underground. Listening to these whispers helps doctors, scientists, and engineers, but today’s most sensitive instruments can be bulky, fragile, and expensive. This paper reports a key step toward pocket‑sized quantum magnetic sensors: a tiny light detector that fits on a chip yet still reads ultra-weak magnetic fields with impressive precision.

How Light Reveals Invisible Magnetic Fields

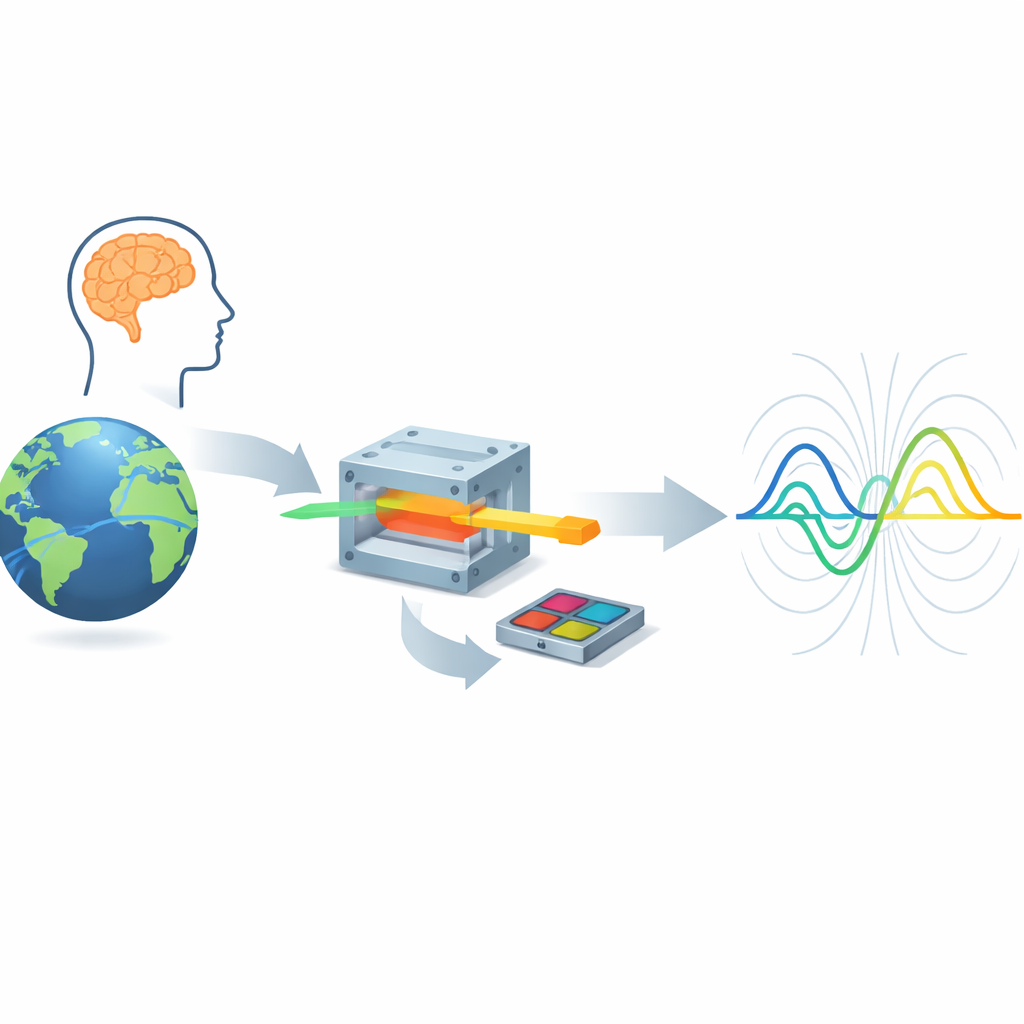

Optically pumped magnetometers are a new class of quantum sensors that compete with, and sometimes outperform, the massive, cryogenic magnets used in hospitals and research labs. They work by shining laser light through a small cell filled with alkali atoms such as rubidium. When a magnetic field is present, the spins of these atoms twist the polarization of the light—a sort of tiny rotation in the way the light wave oscillates. Measuring this minute rotation tells you how strong the magnetic field is, all at or near room temperature. The catch is that the rotation is incredibly small, so the light detection system must be both extremely sensitive and very stable.

From Tabletop Optics to Chip-Size Devices

Conventional optically pumped magnetometers rely on a cluster of separate parts: a polarizing beam splitter to divide the light into two paths, and a pair of matched photodetectors to compare those paths. This setup works well but takes up space and demands precise optical alignment, which is a major roadblock to building wearable brain scanners or field‑ready instruments. The authors tackle this challenge by combining the optical and electronic functions into a single compact module they call a chip-scale packaged in-line polarization-resolved detector, or CSP‑iPRD. Roughly the size of a grain of rice, this device aims to replace the table‑full of bulk optics used in traditional systems.

The Tiny Polarizer and Dual Light Sensor

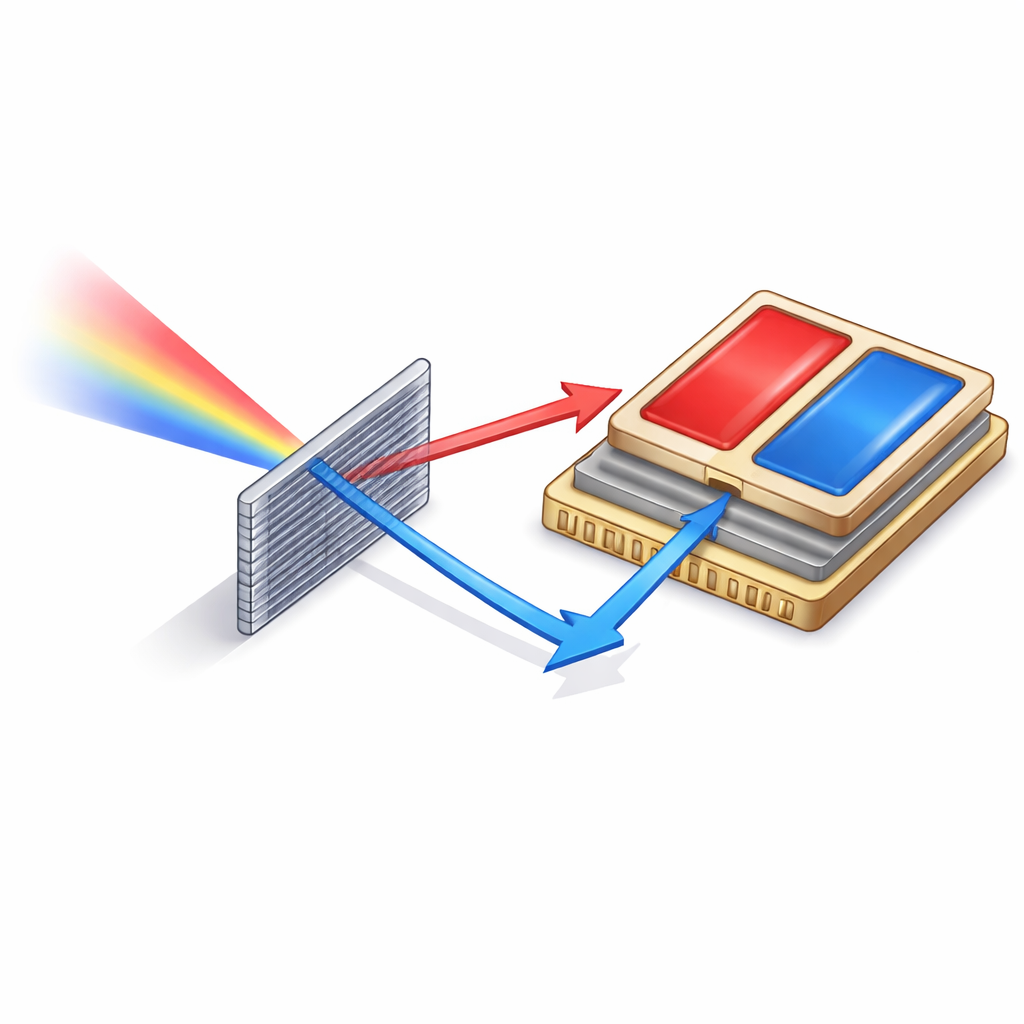

At the heart of the CSP‑iPRD are two key components. The first is a “wire grid polarizer,” made by patterning aluminum nanowires on a transparent quartz chip using standard semiconductor tools. The spacing of these wires is much smaller than the wavelength of light, so one polarization passes through while the other is mostly reflected. On a single chip, the team integrates two such regions with perpendicular polarization directions, allowing them to split light into two orthogonal components side by side. The second component is a dual, or “bi‑cell,” photodiode fabricated with a standard CMOS‑compatible process. It has two nearly identical light‑sensitive areas whose electrical responses match closely, which is crucial to canceling out common noise when their signals are subtracted.

Putting the Pieces Together

The researchers stack the wire‑grid chip directly above the bi‑cell detector with a precisely machined spacer, forming a cube only 3.5 by 3.5 by 1.8 millimeters. When a laser beam passes through, each polarization component is steered onto one half of the photodiode. By measuring the difference between the two outputs, the system reads out tiny changes in polarization angle. Lab tests show that the integrated polarizer achieves a strong extinction ratio—meaning it cleanly separates polarizations—and that the assembled detector can resolve polarization rotations smaller than one thousandth of a degree. Importantly, the chip keeps unwanted common signals, such as laser power fluctuations, strongly suppressed over a wide frequency range.

Measuring Real Magnetic Fields

To prove the device is more than a lab curiosity, the team plugs it into a high‑performance “SERF” optically pumped magnetometer, a design known for record‑breaking sensitivity at very low magnetic fields. Inside a magnetically shielded enclosure, they use their chip to monitor the polarization rotation of a laser beam passing through a heated rubidium vapor cell. The resulting magnetic sensitivity—about 33.5 femtotesla per square‑root hertz at 10 hertz—is roughly twice worse than a bulky commercial detector used for comparison, mainly because the tiny chip collects less light. Still, this level is already good enough for many real‑world uses, including heart and muscle measurements and some brain‑imaging tasks.

What This Means for Future Devices

In everyday terms, the new detector trades a modest loss in raw sensitivity for dramatic gains in size, robustness, and ease of manufacturing. Because it is built with standard chip‑making methods and requires no delicate free‑space alignment, it can be replicated and assembled in large numbers, opening the door to dense arrays of sensors that fit into helmets or portable probes. With further improvements to light collection and coatings, the authors expect higher performance without giving up the compact form factor. In short, this work shows that a key part of state‑of‑the‑art quantum magnetometers can be shrunk onto a chip, bringing ultra‑sensitive magnetic field measurements closer to everyday clinical, industrial, and field applications.

Citation: Cho, H.J., Na, Y., Park, S. et al. Chip-scale packaged in-line polarization-resolved detector for optically pumped magnetometers. Microsyst Nanoeng 12, 114 (2026). https://doi.org/10.1038/s41378-026-01226-z

Keywords: optically pumped magnetometer, chip-scale sensor, polarization detector, quantum magnetometry, biomedical imaging
